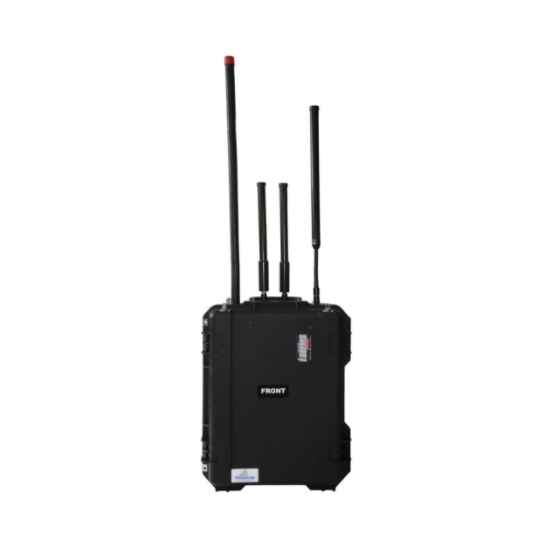

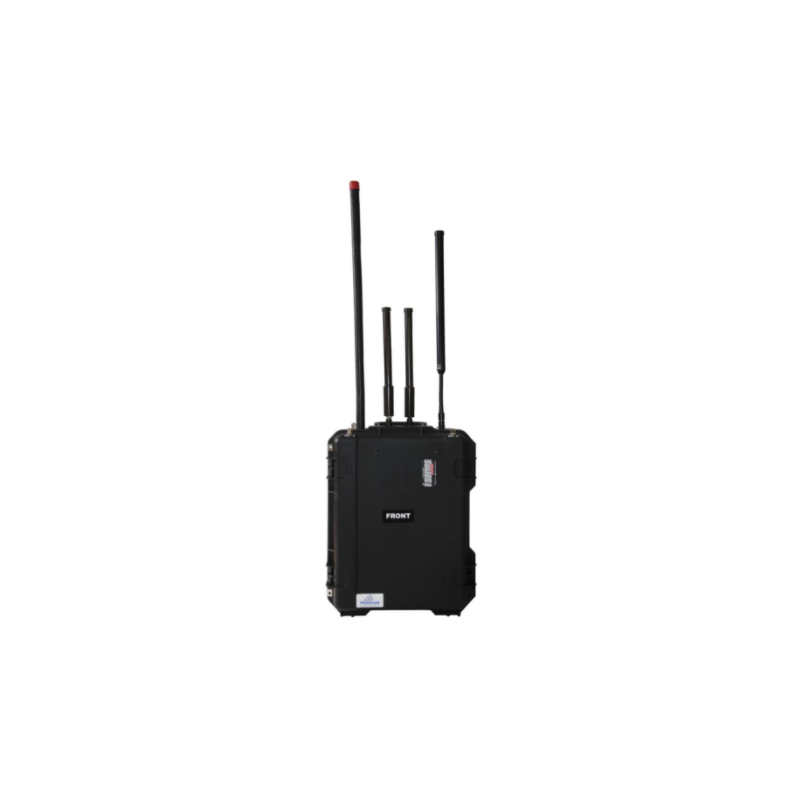

MP809 – MANPACK JAMMER
The MP809 is an upgraded Manpack, designed to neutralize and jam IED’s communication during special units’ activity in the field. The MP809 uses state-of-art technology for maximum performance.
The unit is controlled by Microprocessor for DDS programming. The MP809 transmits white noise signal which cuts off RF communications at 915, 1,600, 2,400 & 5,800 MHz Bands.
The unit protects against using of any type of WLAN in 2.4 & 5.8 GHz, ISM Band in 900 MHz and GPS. Protection jamming radius can reach up to 1 Km away with muting ratio of 4:1.
- System status report via TCP/IP including FWD, VSWR, TEMP
- ON/OFF per Band via TCP/IP
- Status LED
- Wired remote control unit
- Thermal protection
- Low battery indicator
- Programming via TCP/IP per band parameters including Span, Steps & Sweeping Rate
- MIL-STD Connectors
TECHNICAL SPECIFICATIONS
RF Characteristics
| Total Output Power | Up to 500W |
| Internal Modulation | FM Hopping frequency |
| Signal Source | DDS |
| Power Supply | 110/220 VAC |
| Modules Per Unit | 11 |
| Remote Control | LAN Port / TCP/IP Protocol |
| Antennas | External Omni-Directional/Directional Including VSWR protection |
Jamming Frequency Range
| Frequency Bands | According to customer requirements |
| Air Interface Standards | Digital: ISM, GPS, WiFi2.4, WiFi5.8 |
Physical Data
| Dimensions | Pelican 1610 |
| Weight | Approx. 40Kg |
Environment of operation
| Operating Temp | -20ºC – +55ºC |
| Humidity | 5% – 95% |
*Specifications are subject to change without prior notice
*Ver 001.08.17
