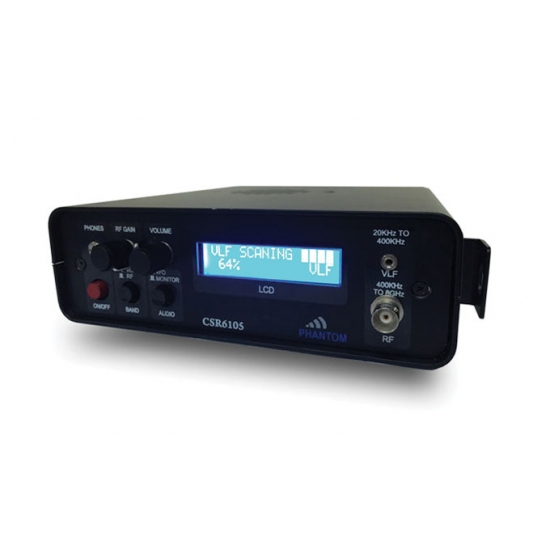

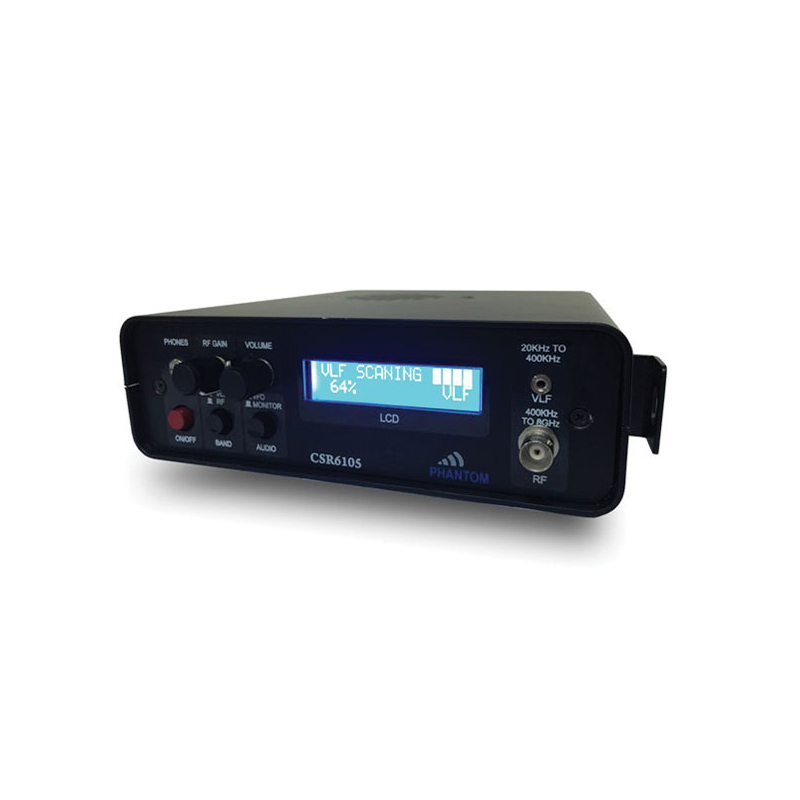

CSR6105 – Professional Bug Detector and locator
CSR6105 is a Professional Bug Detector and locator.
The CSR6105 is a broadband receiver designed to detect and locate all major types of electronic surveillance devices including:
- Room Transmitters
- Telephone Transmitters
- Body Bugs
- Video Transmitters
Broadband receivers such as the CSR6105 provide a very important cost-effective tool for professional sweep teams, government security personal and private citizens with important security needs.
The CSR6105 is very effective for rapidly detecting and locating transmitted signals, while being very easy to learn to use.
The CSR6105 sweep kit includes a custom case that contains all items necessary to conduct a professional sweep.
The CSR6105 include both monitor and detection modes.
The CSR6105 indicate RF strength signal and allows De-Modulate
the receiving signal.
The audio demodulator works with both AM & FM methods.
Frequency Ranges
| VLF Band | 20-400 KHz |
| RF Band | 400 KHz – 8 GHz |
VLF Probe
| Frequency Bands | 20-400 KHz |
| Sensitivity | -35 dBm |
RF Probes
| Frequency Response | 400KHz – 3 GHz / 1.5 – 8 GHz |
| Gain | 40 dB Center Range |
| Sensitivity | -50 dBm |
Audio Amplifier
| Frequency Response | 50 Hz – 16 KHz |
| Dynamic Range | 80 dB |
Display
| LCD | Blue Backlight 2 Lines x 16 Chars |
| Alert Output | 5% – 80% |
Battery
| Type | 6 x AA Alkaline – Life 10-16 Hr Optional NiMH 1800 mAH |
| Low Battery Indicator | 7.2V |
AC Charger (Option)
| Input | 90-260VAC |
| Output | 12VDC with 600ma Charging |
Physical Data
| Size | 205 x 185 x 56 mm |
*Specifications are subject to change without prior notice
*Ver. 1.00.03.15
