Total Output Power 125W

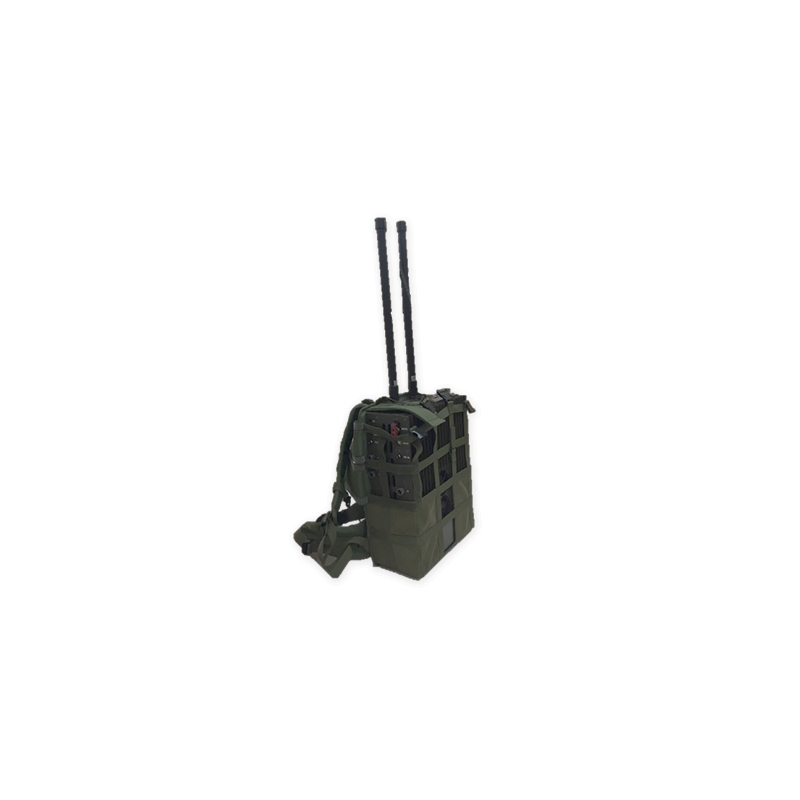

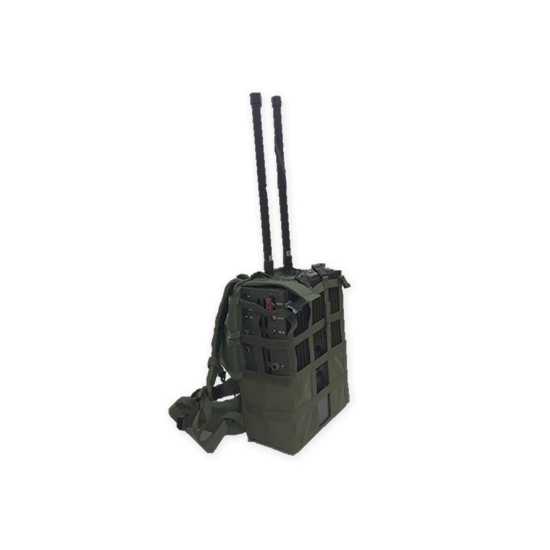

MP806 – IED Jammer
The MP806 IED jammer was designed to neutralize cellular & Wi-Fi communication during special unit’s activity in the field. The MP806 uses state-of-the-art technology for maximum performance. The unit is controlled by a microprocessor for PLL programming.
The MP806 transmits a white noise signal which cuts off cell phone & Wi-Fi communications. The protection jamming radius can reach up to 50 meters in standard environment. The MP806 is supplied with high quality Lithium-Ion batteries and provides up to 2 hours of continuous operation. Additionally, the MP806C supplied with a special backpack case & a remote control.
TECHNICAL SPECIFICATIONS
RF Characteristics
| Output Power | 125W (25W per Band) |
| Internal Modulation | FM Hopping frequency + White Noise |
| Signal Source | PLL synthesized |
| Power Supply | 25.9VDC/27AH Li-Ion Rechargeable Battery |
| Modules Per Unit | 5 |
| Remote Control | 2m Wired |
| Antennas | External Omni-Directional |
Jamming Frequency Range
| Frequency Bands | According to customer requirements |
| Air Interface Standards | Digital: 2/3/4G, WiFi, WiMax |
Physical Data
| Dimensions | 45 x 29 x 10.5 cm |
| Weight | Approx. 12.5Kg |
Environment of operation
| Operating Temp | -20ºC – +65ºC |
| Humidity | Up to 95% |
| Mil Spec Standard | MIL- STD- 810F |
*Specifications are subject to change without prior notice
Ver. 1.00.02.17
